THE EXCESSIVE-BLOCK GATE: HOW A BITCOIN UNLIMITED NODE DEALS WITH “LARGE” BLOCKS
Bitcoin Unlimited’s consensus layer is concerned with preserving the money property of Bitcoin. Blocks that are potentially problematic to accept for technical reasons are dealt with in a different layer where network consensus is not critical. This article describes how Bitcoin Unlimited’s excessive-block logic works from the perspective of a single node. A follow-up article will describe how this “node-scale” behavior facilitates the emergence of a fluid and organic block size limit at the network scale.
Bitcoin is money. If you agree with that, then you probably also agree that Alice shouldn’t be able to create bitcoins out of thin air, that Bob shouldn’t be able to spend the same bitcoin twice, and that Carol shouldn’t be able to freely spend bitcoins that belong to Alice or Bob.
These properties — that we all intuitively recognize good money must have — are enforced by each node on the Bitcoin network. As described by Satoshi Nakamoto:
The enforcement of these rules takes place in each node’s consensus layer. We call it the consensus layer in part because there is widespread human consensus about what these rules are: they are simply the rules needed to make bitcoin function as money.

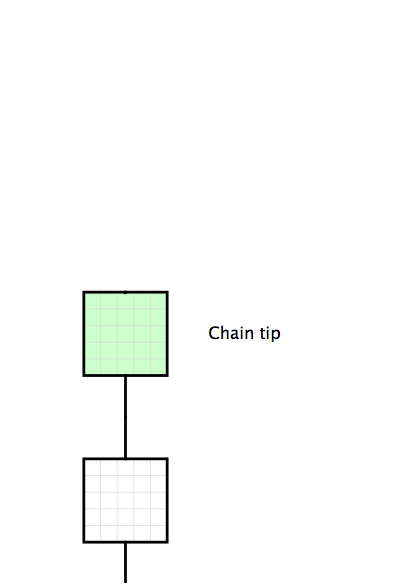

Fig. 2 visualizes the process of a node scanning every transaction in a new block. If all of the transactions are valid and not already spent, then the money property is preserved. This most recent block becomes the new “chain tip,” representing the most up-to-date version of the Bitcoin ledger. Mining nodes begin looking for a new block that builds upon this new chain tip. When a miner finds one, the same process repeats, and Bitcoin’s blockchain is extended once more.
So far so good. Everyone agrees and understands what the rules are.
But what if there is a technical reason that it might be a bad idea to accept a particular block (even though the block would still preserve Bitcoin’s money property)? Remember, the Bitcoin network is made up of computer hardware connected over physical communication channels and subject to physical limitations. A block could contain so many transactions that a miner might be worried that it would never reach miners on the other side of the Great Firewall of China, or a node operator might be worried that it would take up too much of his hard-drive’s space to store or too much of his node’s processor time to validate.
Bitcoin Core gives a black-and-white answer to the fuzzy question of what kind of blocks might be a bad idea to accept. Bitcoin Core says that if the block is larger than 1 MB then it must be rejected (no differently than how the block would be rejected if it contained a double-spend). This rule thus exists in Core’s consensus layer. It works fine if all the other nodes give the same black-and-white answer to this fuzzy question (Fig. 3a), but if a sufficient fraction of the network disagree (e.g., because blocks are full) and think that it’s also a good idea to accept 1.5 MB blocks (remember 1 MB was just a ball-park guess made 6 years ago anyways), then Core nodes will be “forked off the network” (Fig. 3b). Core users will no longer see their transactions confirmed (or confirmed only very slowly) and miners using Core will waste their hash power trying to extend the wrong block. This is a negative outcome that can be avoided.
Before we describe the way a Bitcoin Unlimited node deals with the same problem, notice that Core’s block size rule is not like the other two rules we considered (i.e., those requiring that all transactions in a block must be valid and not already spent). Instead of enforcing Bitcoin’s money property, this additional rule is a hack that addresses a temporary technological limitation of the physical Bitcoin network. Indeed, a technical constraint related to transporting blocks around the network has crept into Core’s consensus layer.
In Bitcoin Unlimited, the consensus layer is only concerned with preserving the money property of Bitcoin. An Unlimited node deals with the fuzzy question of which blocks might be difficult to accept for technical reasons outside the consensus layer and in a fuzzy way: it makes a guess and then changes its mind if it guessed wrong!
The node does this by using what might be called an excessive-block gate. The excessive-block gate first checks the size of each new block (and other properties that might make the block difficult to accept for technical reasons such as the number of sigops and the size of any large transactions [see notes below]). If the block is not excessive, it passes directly through the gate to the node’s consensus layer. However, if the block is excessive, the gate holds the block back, preventing it from becoming the new chain tip. The gate only opens if a sufficient number of additional blocks are stacked above the excessive block. What constitutes an excessive block is set by the user (see notes below).
If the majority of the network agrees that the block in question was excessive, then eventually a new block will come to orphan the excessive block (i.e., because most miners will still be mining on the prior block), as animated in Fig. 5.
However, if the network disagrees, then new blocks will be built upon the block the node thought was excessive (i.e., because most miners would have moved on to this “excessive” block). Once the stack of blocks reaches a certain height defined by the node’s acceptance depth, the gate opens, allowing the blocks to pass through to the consensus layer and extend the chain. (The node’s acceptance depth is user configurable.) Unlike a Core node, an Unlimited node will not be forked off the network in the event that the network as a whole begins to accept larger blocks.
Of course, it is also possible that both chains are built upon— sort of a mixture of Fig. 5 and Fig. 6. Still, the excessive-block gate works unchanged. As soon as a red block has enough blocks built above it, the gate opens, presenting the red block and the blocks above it as one possible chain tip. If it is longer than the current chain tip, the current chain tip will be replaced. If it is not longer, the current chain tip will be retained.
Because the excessive-block logic exists outside the consensus layer, it is not critical that nodes deal with excessive blocks in the same way. Each node operator is free to express his opinion about what makes a block “excessive” by configuring his node’s excessive-block gate appropriately. Through the cumulative effect of thousands of node operators and miners expressing their preferences like this, an “effective block size limit” naturally emerges. This will be the subject of our next article.
The author kindly thanks Roger Murdock, Andrea Suisani (sickpig), Andrew Stone (thezerg), HostFat, and Andrew Clifford (solex) for their feedback on earlier drafts of this article.
This document and its images are placed in the public domain.
What makes a block excessive?
As defined by PR164, a block is considered excessive unless it contains no more than Qmax megabytes and no more than 20,000*ceiling(Qmax) sigops. Qmax is configurable in Bitcoin Unlimited. For compatibility with today’s blockchain, any transaction size is allowed in block ≤ 1MB. In blocks whose size is > 1MB, a block is excessive if it contains a transaction with a size ≥ qmax (which is 100KB by default). This limitation on the size of a transaction solves the quadratic hashing problem without adding a new rule to the consensus layer. These rules are identical to Core’s for Qmax=1.
How long does the gate stay open?
By default, once opened, the excessive-block gate doesn’t reset to the closed position until the node sees 144 non-excessive blocks in a row. Without this feature, a node would constantly trail the blockchain tip if a series of excessive blocks is produced.
